Connection diagram for hash boards and fans

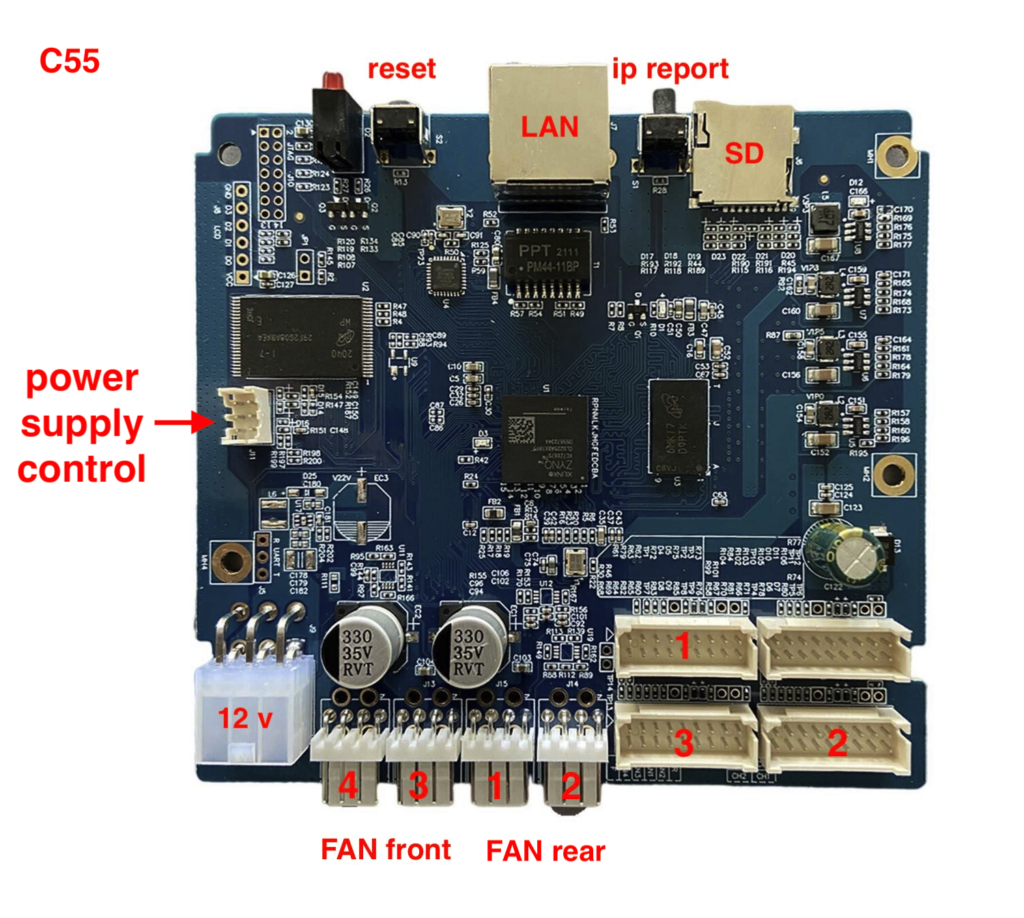

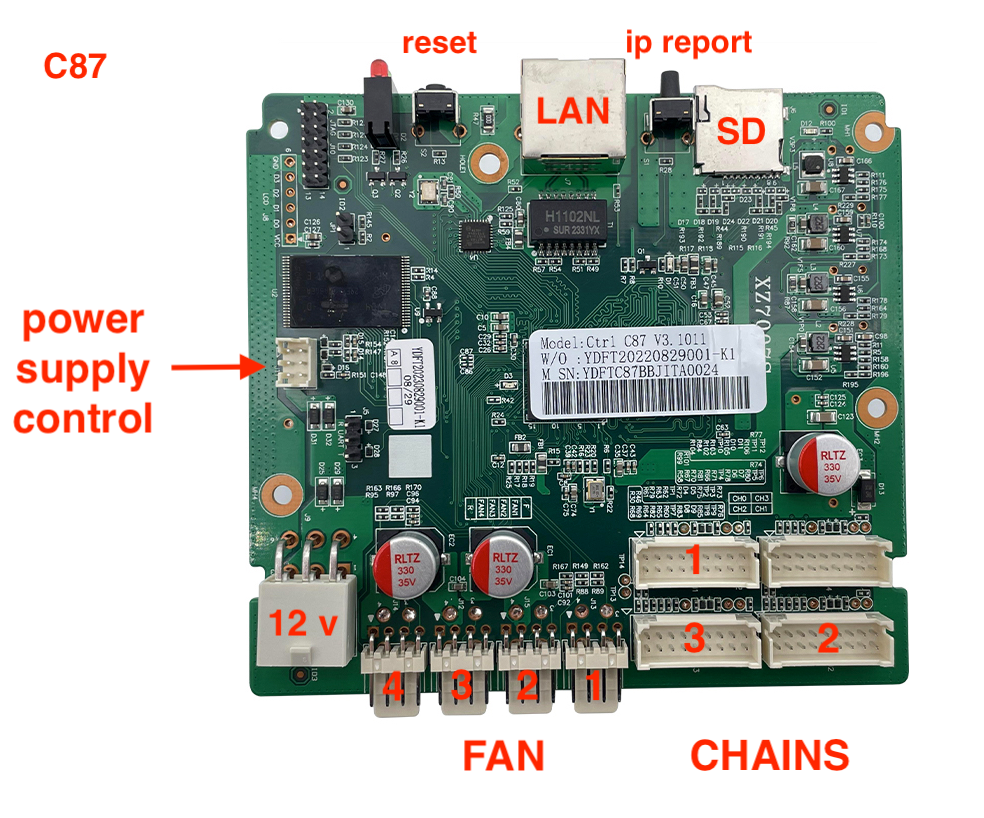

Xilinx 7007 control board (sd slot on the outside)

Connection diagram for hash boards and fans
Connection diagram for hash boards and fans

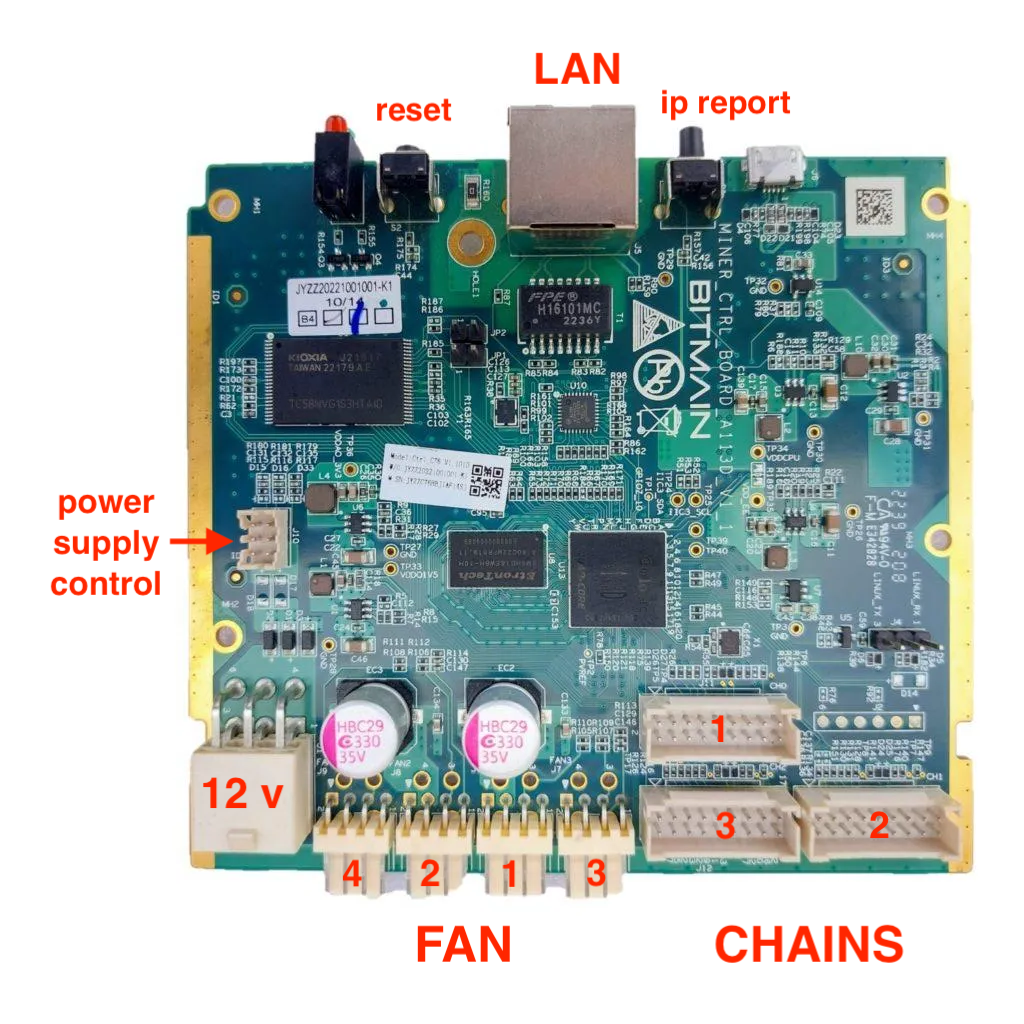

Amlogic A113d control board ( Micro-USB connector on the outside)

Connection diagram for hash boards and fans

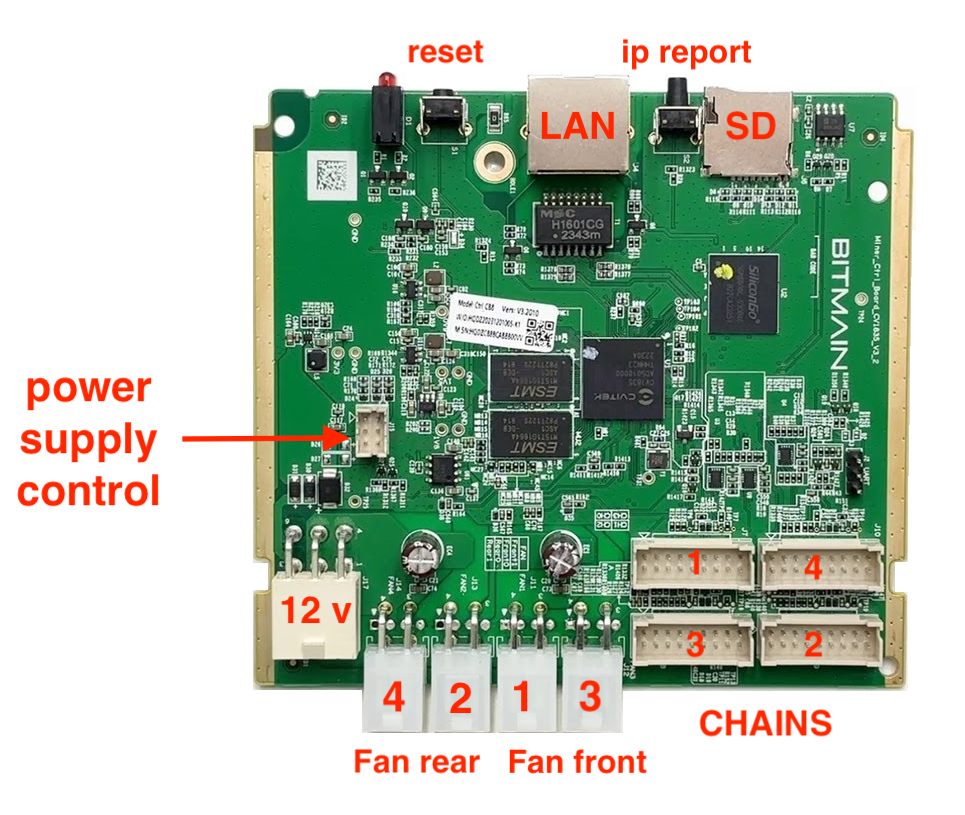

CVITEK control board - CV1835(sd slot on the outside)

Connection diagram for hash boards and fans

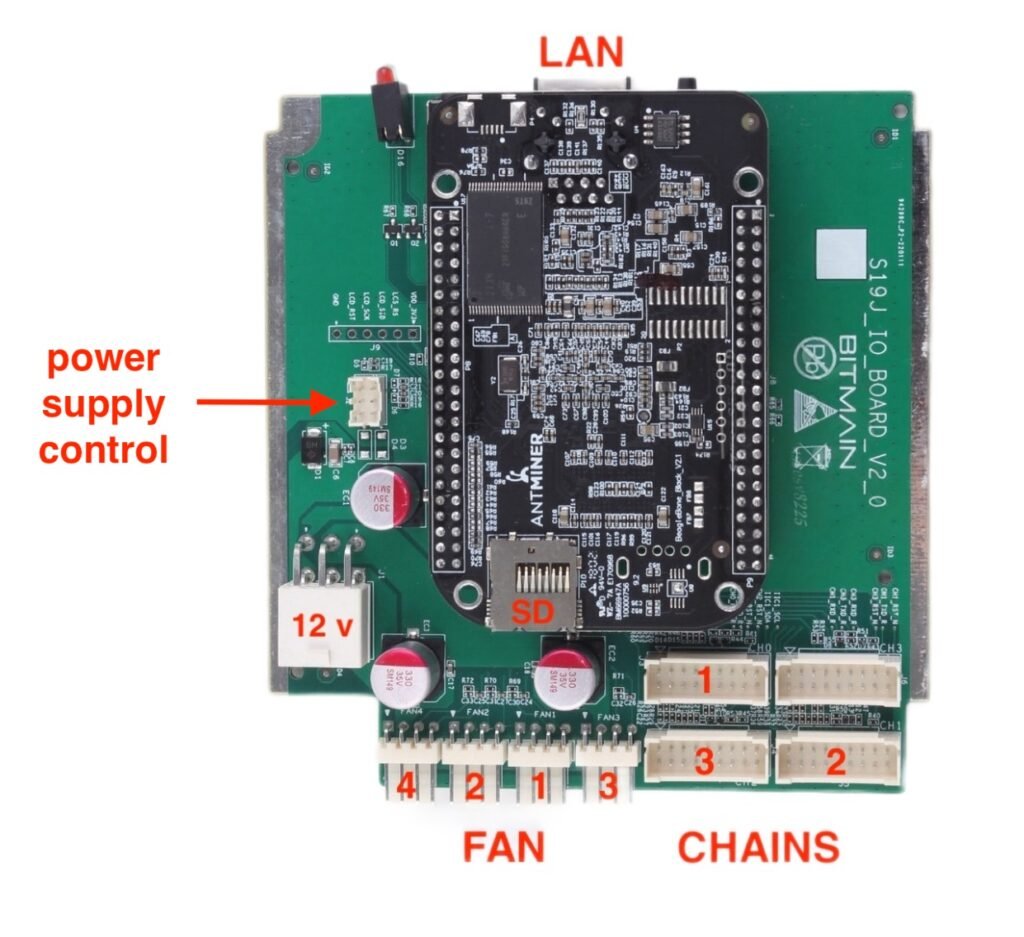

Beagle Bone Control Board – BB (consists of 2 boards, the SD slot is located inside)

Connection diagram for hash boards and fans
